About This

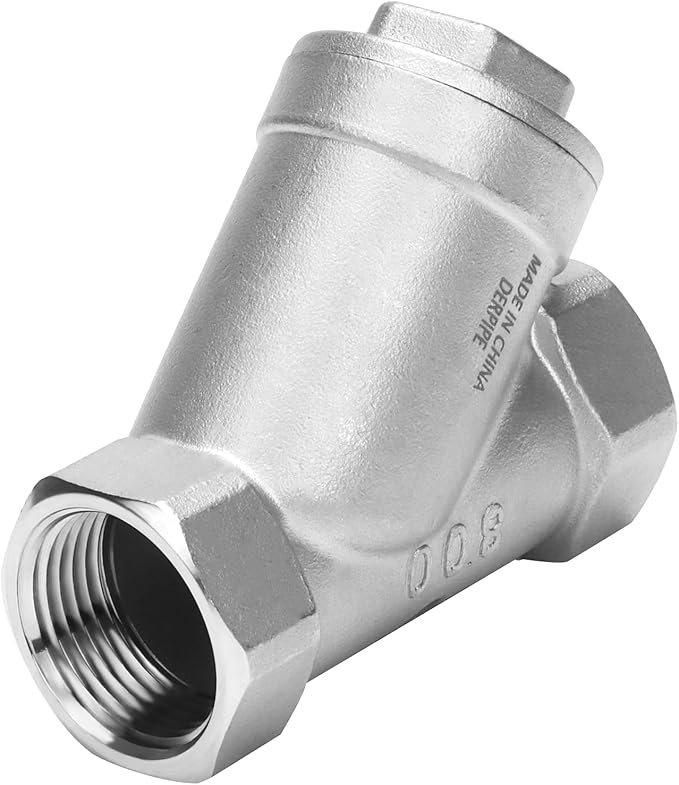

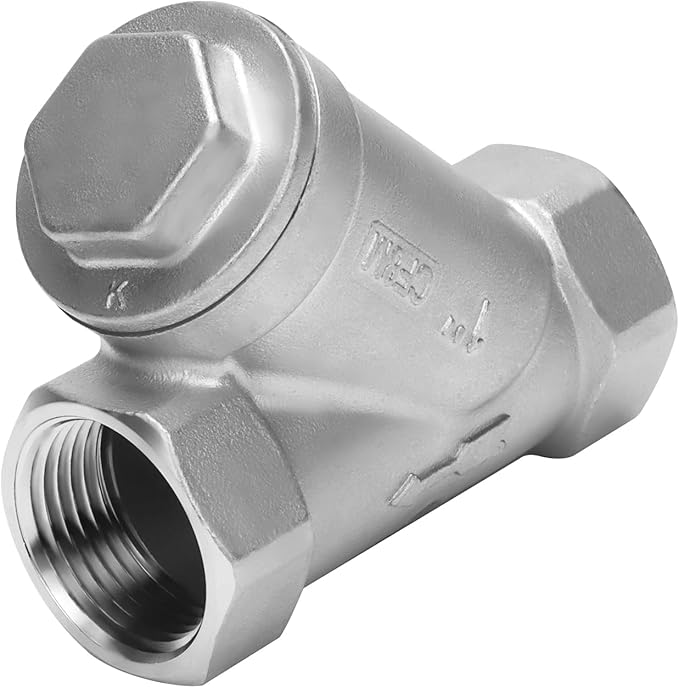

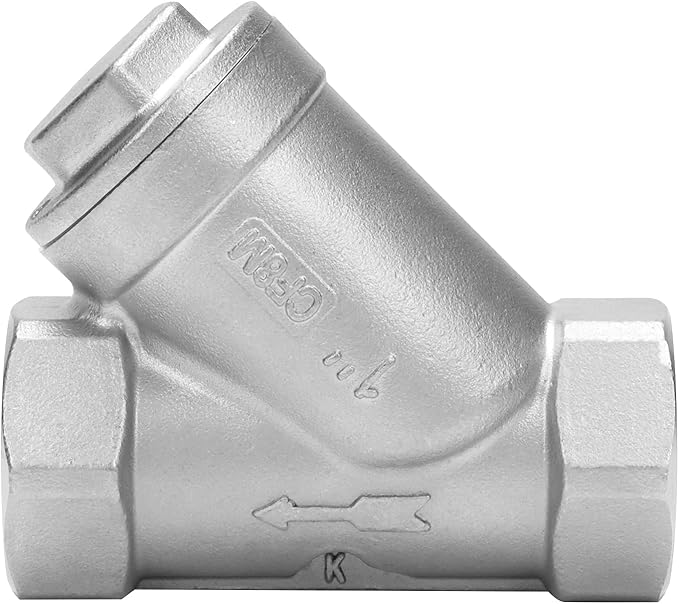

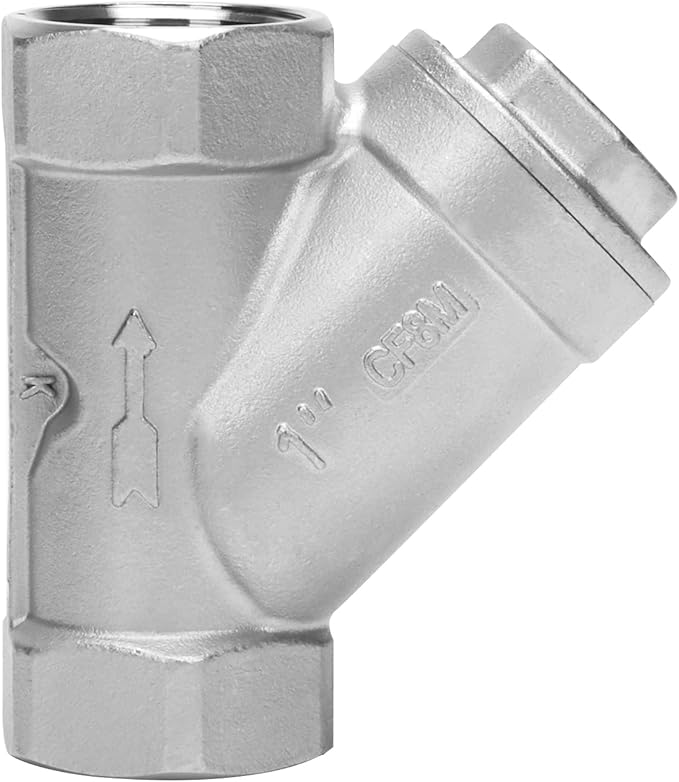

• Y strainer size: 1 inch NPT female x female thread
• Wye strainer material: Stainless Steel SS 316, suitable for full range of liquids and gas, water, air and some corrosive liquid

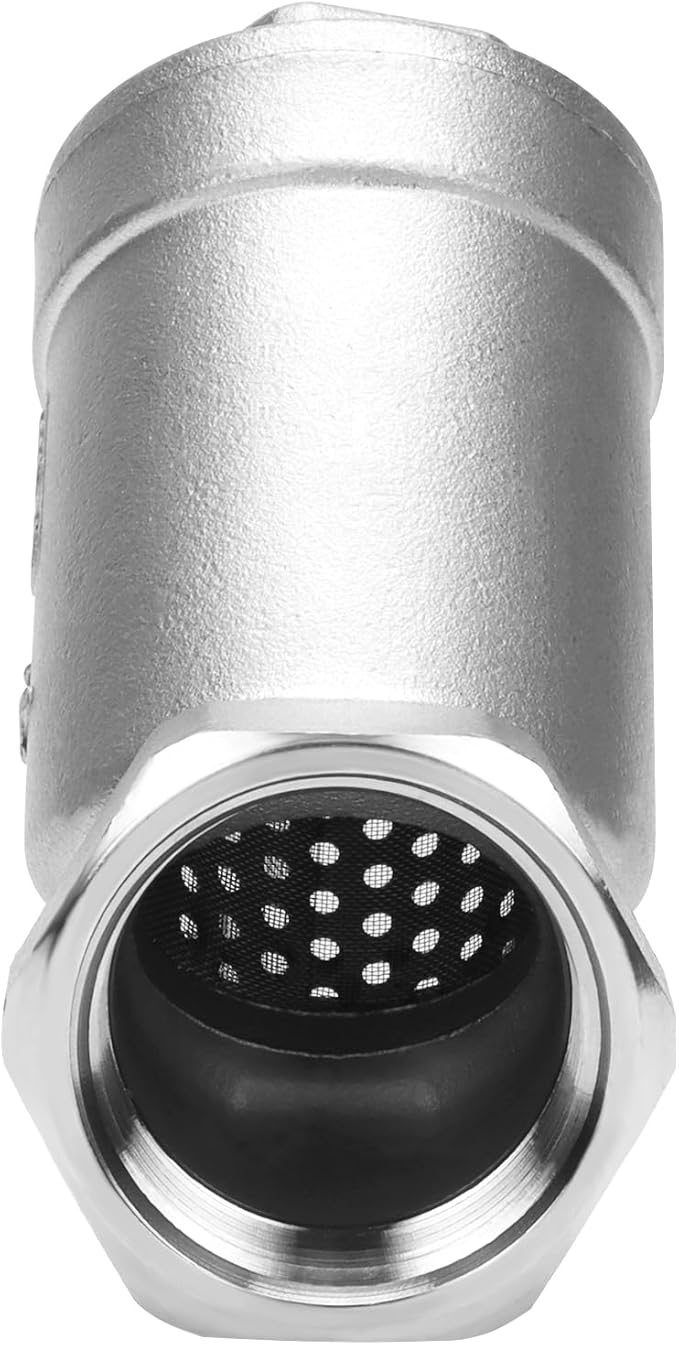

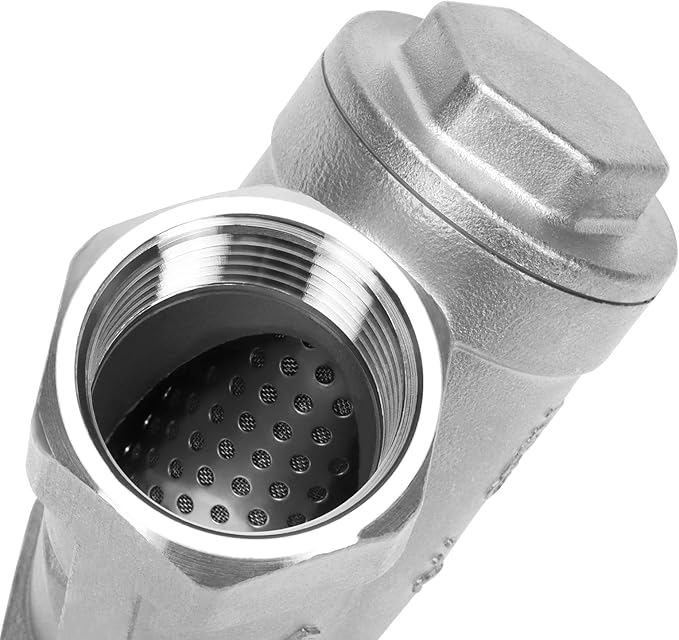

• Stainless steel strainer working temperature: -25-480℉/-30-250℃; working pressure: 1.0-3.0mpa/145-435psi; specification: 100 mesh screen; 800WOG/1.00mm mesh screen, Wye strainer is self aligning screen design
• Wye strainer potential uses (not limited to): home water system, pressure washer trailer, waste oil burner, sprinkler field, feeding a pump for hydroponics, water system fed from gutter, drip irrigation control valves, pneumatic used engine oil pumps, boiler installation, resin trap, heat exchanger tubing,etc
• Y - type filter is an indispensable device in the pipeline system for conveying media and is usually installed at the inlet end of hydraulic control valve / pressure reducing valve / pressure relief valve / constant water level or other equipment to remove particulate impurities in the media to protect the normal use of the valve equipment

Overview

• Material : Stainless Steel
• Brand : DERPIPE
• Exterior Finish : Stainless Steel
• Inlet Connection Size : 1 Inches
• Inlet Connection Type : FNPT
• Outlet Connection Type : FNPT
• Maximum Operating Pressure : 435 Pound per Square Inch
• Number of Ports : 2
• Outlet Connection Size : 1 Inches
• Specification Met : ASME B16.34, ASTM, MSS SP 80
